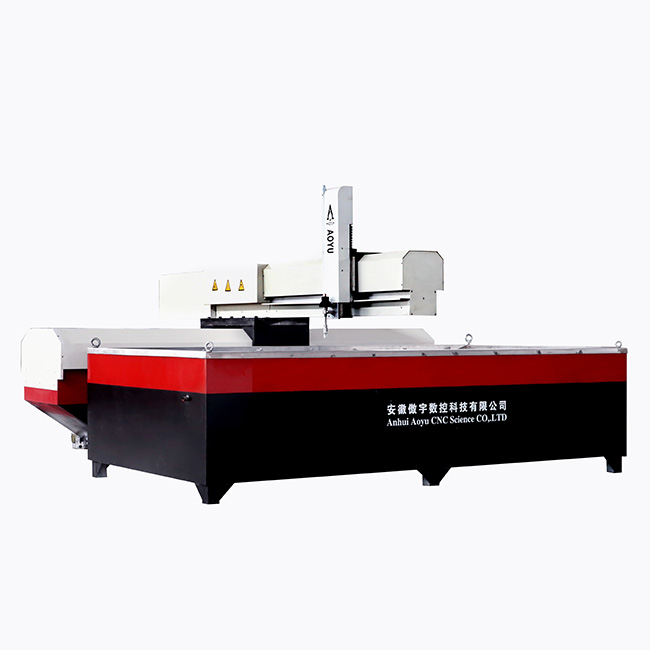

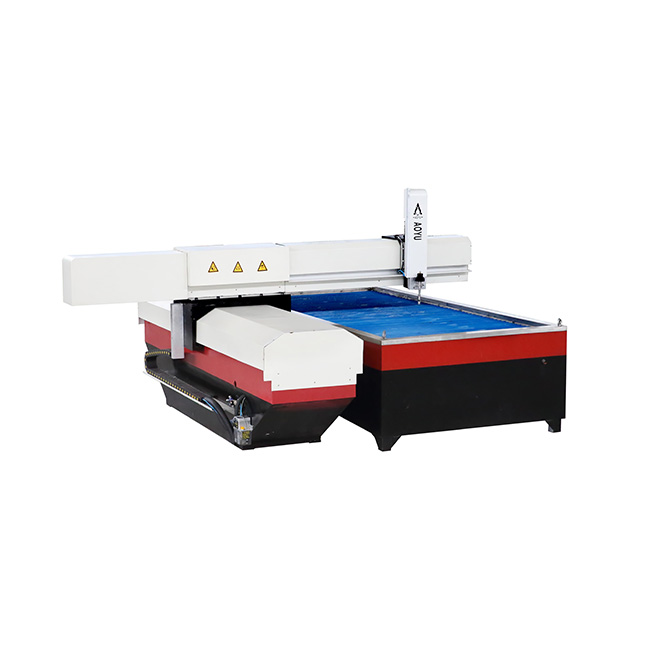

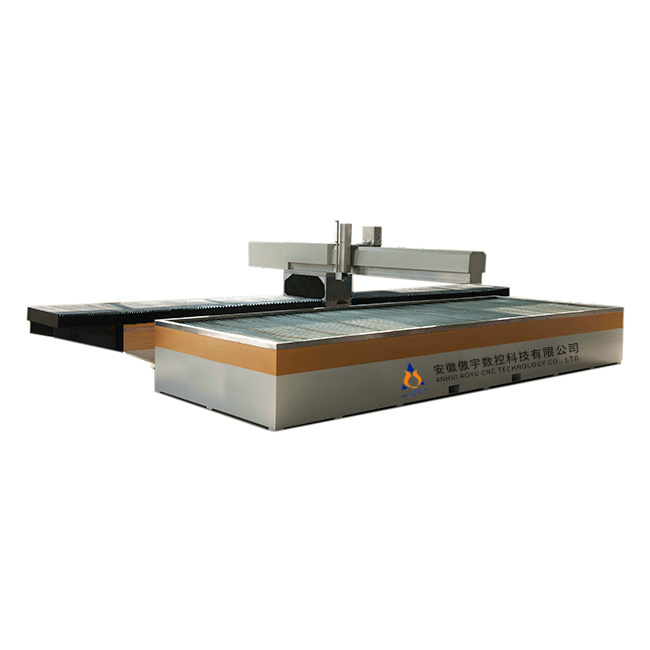

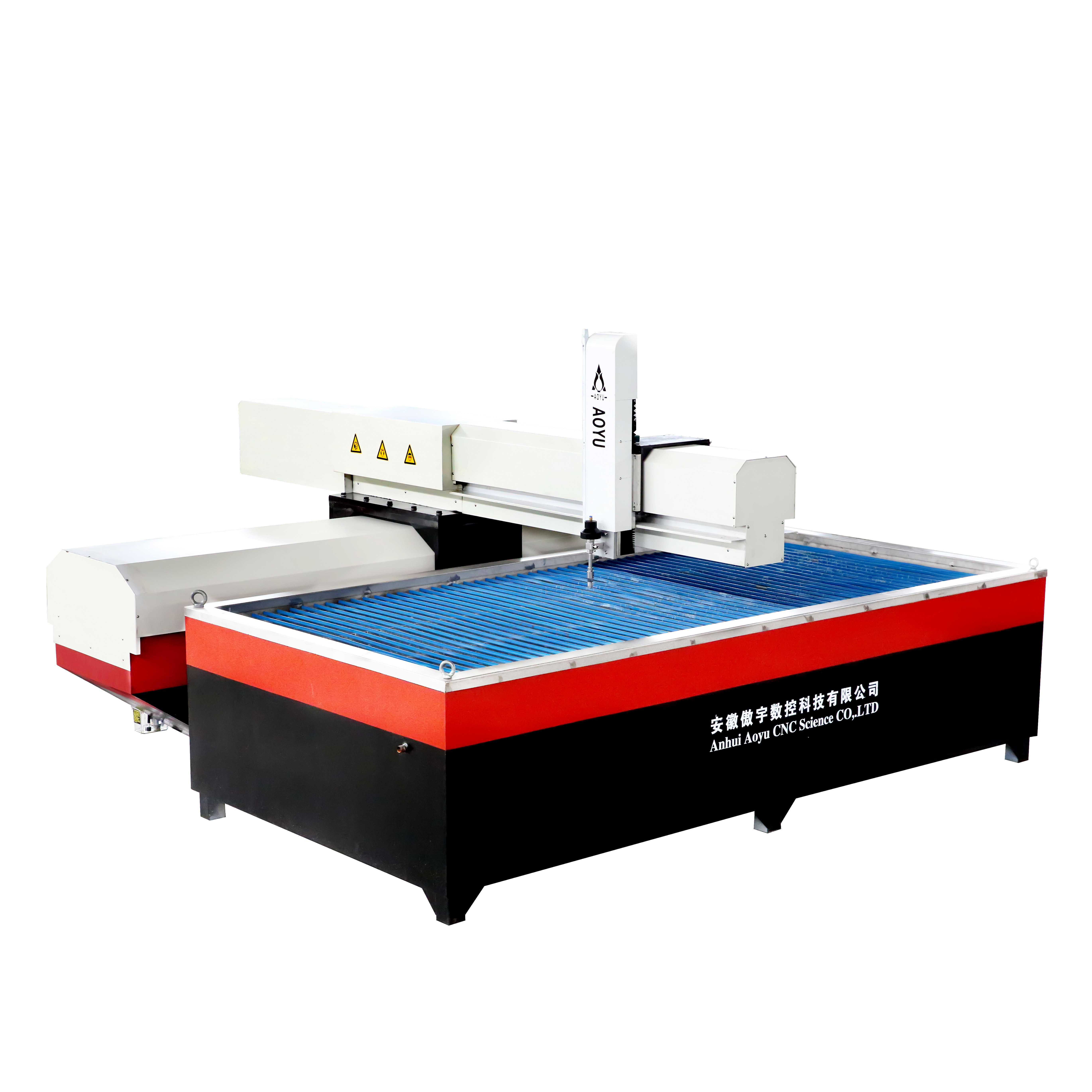

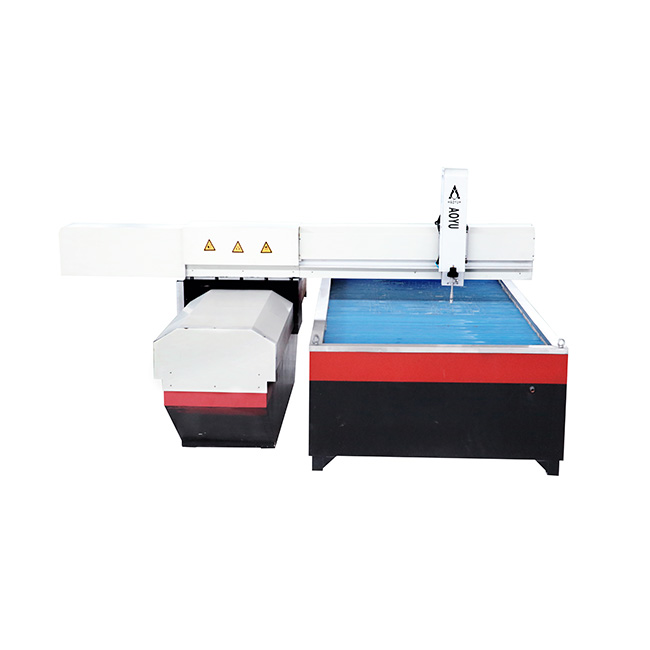

Cantilever workbench
X axis maximum running speed 15000mm/min
Y axis maximum running speed 15000mm/min
Z axis maximum running speed 1000mm/min
Cutting accuracy ±0.1-±0.2mm
Control accuracy ±0.02mm
Repeat positioning accuracy ± 0.02mm
Characteristics
The cantilever type worktable can work on the workpiece in three directions, overcomes the shortcomings of the gantry type machine and only limits the size of the workpiece. The motion mechanism is separated from the cutting platform without affecting each other. The loading and unloading space is large, and the dragon is suitable for materials. Rules, the loading and unloading method is not fixed.
safety protection
Overtravel limit protection function; the system is equipped with double limit limit protection of hard limit and soft limit to prevent accidents during high speed operation.
The special protective cover design is more effective in waterproofing and sand-proof, making the machine durable and beautiful in appearance.
Lubrication system
The centralized automatic lubrication system is used to make the lubricating oil reach each lubrication point in the transmission system on time, so that the machine tool works more smoothly and reliably, and the maintenance is simple and convenient.
Lead screw: It adopts Taiwan's high-quality rolling guide and ball screw to ensure the high precision of parts processing, stable transmission and durability, which can realize gap-free movement and good precision retention.
Rack and pinion: Taiwan YYC (import) guarantees high precision machining of parts, stable transmission and durability.
Cantilever series model
Customized specifications according to customer needs
